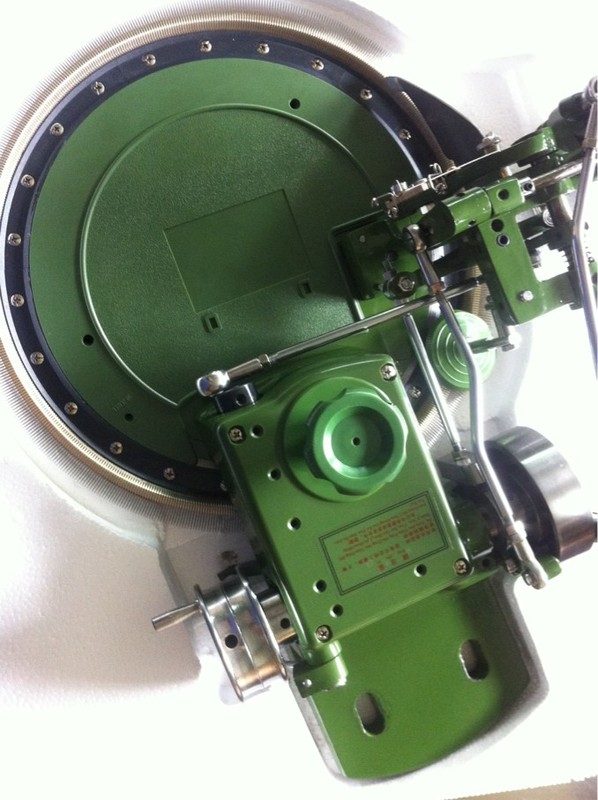

Industrial Dial Linking Machine 14"
Multi-Layer Linking Solution for Precision Knitting
Product Overview
This industrial-grade dial linking machine features single-line linking technology, designed for efficient multi-layer fabric joining (1-4 layers). Ideal for seamless integration with modern knitting production lines.
Key Features
- ⚙️ Multi-Gauge Compatibility: Supports 3G/5G/7G/8G/9G/10G/12G/14G/16G configurations
- ⚡ High-Speed Operation: 400 needles/min production capacity
- Modular Design: Compatible with 3,5,6,8,10,12,14,16,18,20,22 needle configurations
- Heavy-Duty Construction: 30kg reinforced frame with 1-year warranty
Technical Specifications
| Parameter | Detail | Standard |
|---|---|---|
| Dial Diameter | 356mm (14") | ISO 4915 Stitch Standard[1]() |
| Power Supply | 220V 50Hz (Single Phase) | CE/UL Certified[3]() |
| Power Consumption | 90W (1/8HP) | Energy Efficiency Class B |
| Needle Models | 7/6/5/4/3/2 Series | Industrial Knitting Standards |
| Stitch Count | 20/2~24/2 | Textile Quality Control |
Typical Applications
◼ Automated Sweater Production Line
Connects with CNC knitting machines (1.5-18G configurations) and quality inspection systems for end-to-end production.
◼ Multi-Layer Fabric Processing
Handles 1-4 layer materials simultaneously, ideal for complex garment components like collars and cuffs.
